Portable Melter: High-Efficiency Compact Melting Machine for Small-Batch Use

For businesses in pharmaceuticals, food processing, and chemical manufacturing, small-batch melting operations often face frustrating bottlenecks with traditional equipment. Imagine a pharmaceutical lab wasting 40 minutes moving a fixed melter between workstations to test 3 ointment formulations, or a chocolate factory delaying production while waiting for a bulky machine to be repositioned for a new flavor. These fixed, cumbersome devices also force fragmented workflows—melting in one unit, mixing in another, and defoaming in a third—leading to wasted time, contamination risks, and inconsistent quality. The Portable Melter solves these pain points with a compact, portable design that integrates melting, mixing, and vacuum defoaming into one seamless system—streamlining operations, cutting labor costs, and boosting product quality significantly.

1. Product Overview

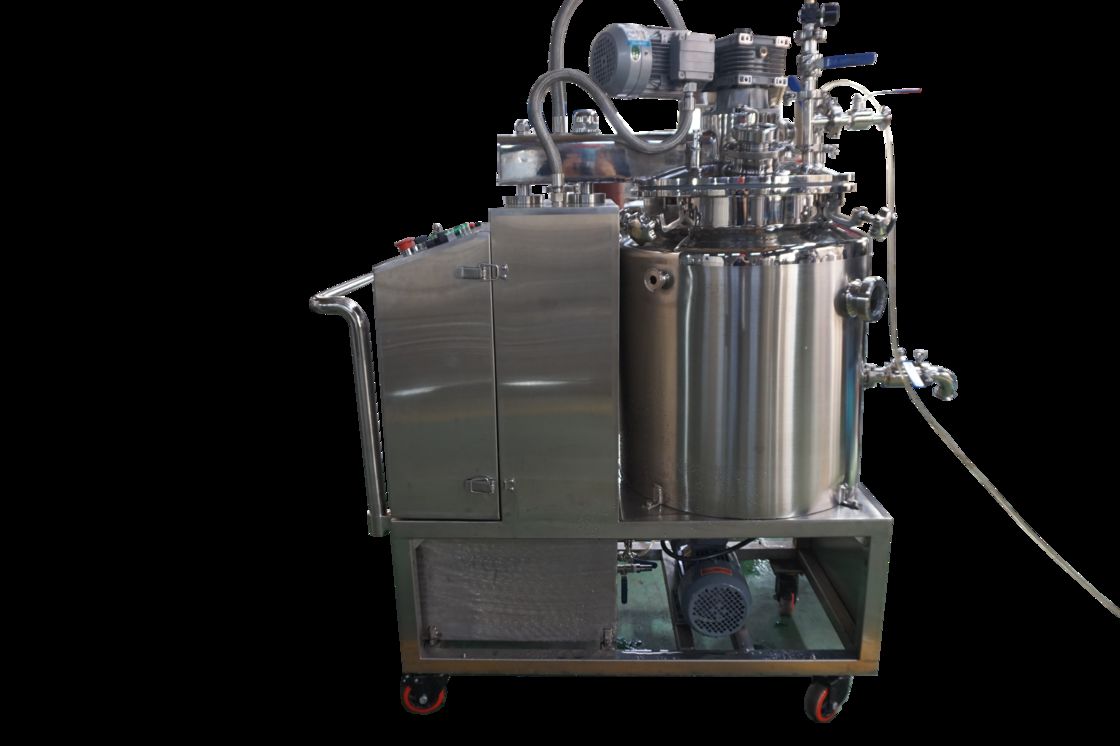

The Portable Melter is a all-in-one solution that combines fast uniform melting, high-efficiency stirring, precise temperature control, and vacuum defoaming in a single compact unit. Crafted from food-grade and pharmaceutical-grade 316L stainless steel (304 stainless steel available as an economical alternative), it boasts strong corrosion resistance—ideal for acidic food slurries or chemical raw materials—and its smooth polished surface (Ra ≤ 0.8μm) prevents material residue buildup. No fixed installation is required: with a footprint of only 0.8㎡, it fits through standard 80cm-wide lab or workshop doors, and heavy-duty locking casters ensure stable positioning while enabling seamless movement between R&D labs, workshop production lines, and small-batch trial stations.

2. Core Advantages

2.1 Portable & Versatile

Unlike traditional melting equipment that is either bolted to the floor or requires forklifts for movement, the Portable Melter features silent shock-absorbing casters that glide smoothly across workshop floors. It weighs just 150-250kg (depending on volume), so a single operator can move it easily—no tools, no team lifts, just roll to the target position, lock the casters, and start operation immediately. Practical data shows it cuts workstation transition time by 89%: a pharmaceutical client testing 5 batches of suppositories daily reduced transition time from 45 minutes to 5 minutes, saving over 3 hours of operational time per day. This makes it perfect for multi-batch production or multi-line collaborative operations where flexibility is key.

2.2 Integrated, Faster Processing

Its biggest advantage lies in eliminating "transfer gaps" between processes—those time-consuming and risky steps of moving materials from melter to mixer to defoamer. By handling all three core processes in one closed vessel, it not only saves time but also avoids contamination and temperature loss during transfers. Key performance highlights include:

• Fast and uniform melting: Equipped with a dual-layer insulated heating jacket to minimize heat loss and a 1.5kW high-power motor driving a spiral stirring paddle. The paddle's unique design circulates materials from bottom to top, eliminating hot spots that could burn sensitive ingredients like dairy mixtures or pharmaceuticals. This setup achieves full melting in just 10 minutes—30% faster than traditional passive-heating machines.

• Precise temperature control: Adopts a digital PID controller that adjusts heating power 10 times per second, maintaining a temperature accuracy of ±1℃—critical for heat-sensitive materials like wax-based ointments (which solidify too early if cool) or chocolate (which seizes if overheated). Paired with 0-600rpm stepless speed regulation, it adapts seamlessly to thick materials like honey or thin slurries like fruit purees without manual retuning.

Built-in vacuum defoaming: Integrates an oil-free rotary vane pump that reaches an absolute vacuum of ≤-0.095MPa, removing 99% of trapped air bubbles while melting and stirring. This avoids product defects like grainy chocolate or unstable pharmaceutical emulsions, and eliminates the need for a separate defoaming unit—cutting overall batch time by 40% compared to traditional multi-step processes.

2.3 Durable & Low-Maintenance

Designed for non-stop industrial use, it minimizes downtime from cleaning and maintenance. Its smooth stainless steel interior has no crevices or dead corners where material can hide—after use, a quick rinse with warm water and mild detergent (or CIP cleaning for pharmaceutical use) completes the job in just 5 minutes, 60% faster than traditional machines with complex internal structures. Critical components like the heating element and vacuum pump are rated for 10,000+ hours of continuous operation (equivalent to 5 years of daily 8-hour use), and there are no fragile sensors or disposable filters to replace regularly—reducing annual maintenance costs by an average of $2,000 compared to similar equipment.

2.4 Easy & Safe to Operate

Its user-friendly control panel is designed for operators of all skill levels: it can store up to 10 custom program presets (e.g., "Chocolate Melting" with 45℃ constant temperature and 300rpm stirring, or "Ointment Preparation" with 70℃ and 200rpm) for one-touch startup. New operators can master basic operations in just 3 minutes without specialized technical training. Safety is also prioritized: it features multiple fail-safes including overheat protection (automatic shutdown if temperature exceeds 210℃), vacuum pressure limiting (prevents vessel damage), and a large emergency stop button. Fault alerts (e.g., "Vacuum Leak" or "Motor Overload") are displayed in plain English, allowing technicians to troubleshoot in under 1 minute.

3. Technical Specifications (Customizable)

4. Application Fields

• Pharmaceuticals: Ideal for melting/mixing ointments, suppositories, and APIs. Precise temperature control preserves stability, and fast cleaning prevents cross-contamination—perfect for R&D and small-batch production.

• Food & Beverage: Great for melting chocolate, candy, and caramel, plus homogenizing sauces. Spiral stirring ensures smooth texture, and vacuum defoaming prevents chocolate bloom.

• Chemicals: Suitable for melting polymers/resins for adhesives/coatings and pretreating small-batch raw materials. Flexible parameters and compact size support R&D and small-batch production.

The Portable Melter empowers businesses to "do more with less": pharmaceutical labs save 4+ hours daily, food manufacturers cut changeover time by 70%, and chemical R&D teams speed up time-to-market. All this comes without compromising quality or safety—making it a versatile fit for R&D and small-batch production.

To learn about custom configurations, technical details, or a quote, contact our team anytime.
